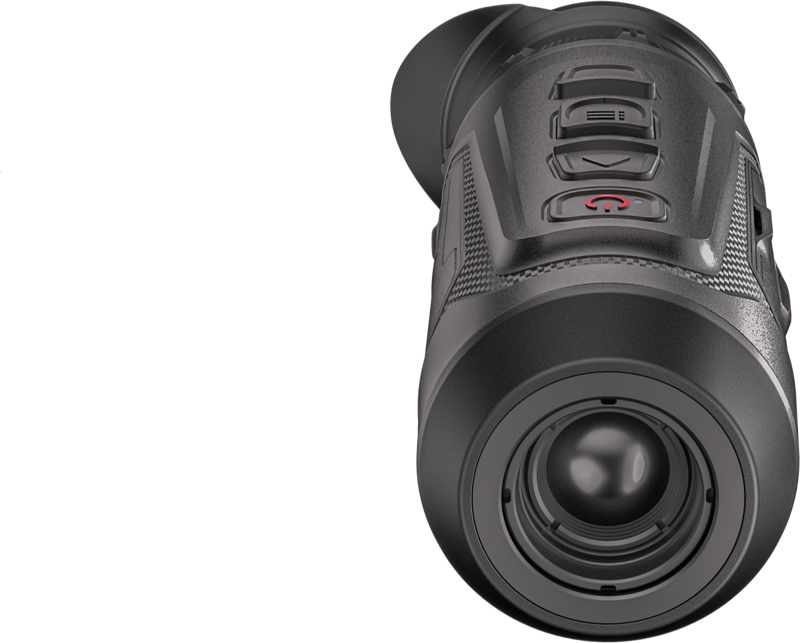

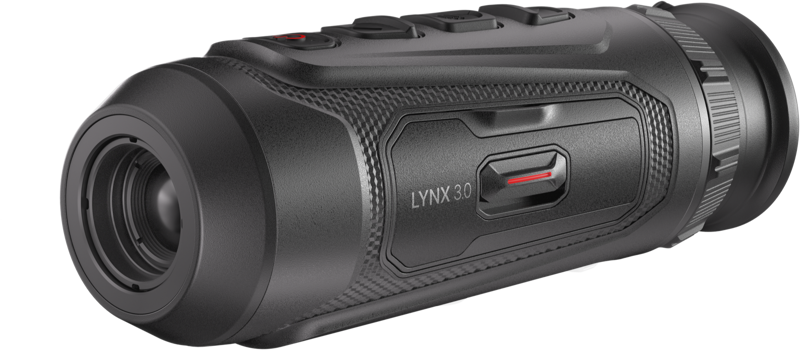

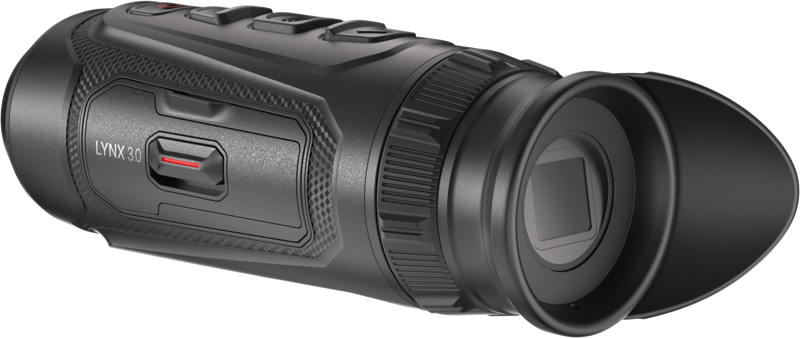

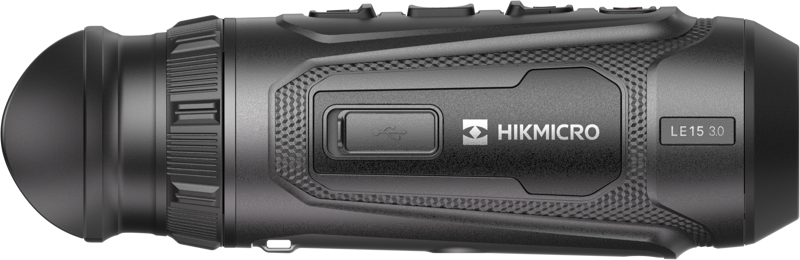

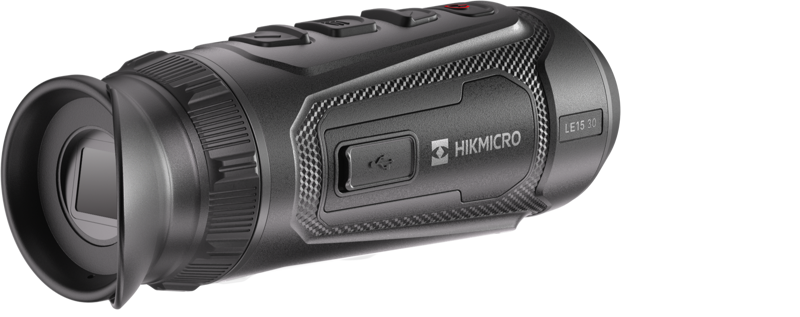

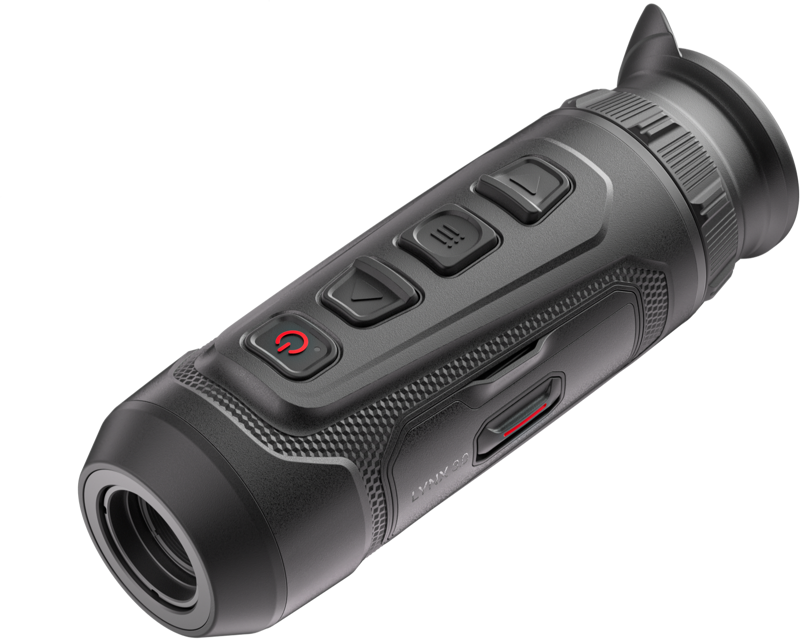

Lynx LE15 3.0 Thermal Monocular

Technical specifications

Manufacturer

Hangzhou Microimage Intelligent Technology Co., Ltd., Floor 2,Building A1, No.299,Qiushi Road, Tonglu Economic Development Zone,Tonglu County, Hangzhou, China https://www.hikmicrotech.com/

EC Rep

Microimage Europe B.V., Dirk Storklaan 3, 2132 PX Hoofddorp, Netherlands, [email protected]

Areas of Usage

Surveillance, Nature, Marine, Hunting, Birdwatch

Battery Type

Lithium

Dimensions (W x H x D) (mm)

156.3 × 53.6 × 49.5

Dioptric Compensation

-5 D to +3 D

Display Screen Size

0.39

Exit Pupil Ø

6

Eye Relief

20

Eyecups

Twist-Up 3 step

Field of View (Angle)

11.7° × 8.8°

Magnification

2.2 - 17.6

Maximum Aperture

1.0

Maximum Runtime

6

Memory Card Type

Built-in (64GB)

Sensor Size

256x192, 12µm

Storage Capacity

64GB

Waterproof

IP67

Weight

296,5

Warranty (year(s))

2

Type of Night Vision

Thermal

Operating temperature °C (minimum)

-30

Operating temperature °C (maximum)

45

Thermal sensitivity NETD

20mK

Detection range

750

Field of view 100m

20.5 - 15.4

Near Focus

7

Objective Lens

15
