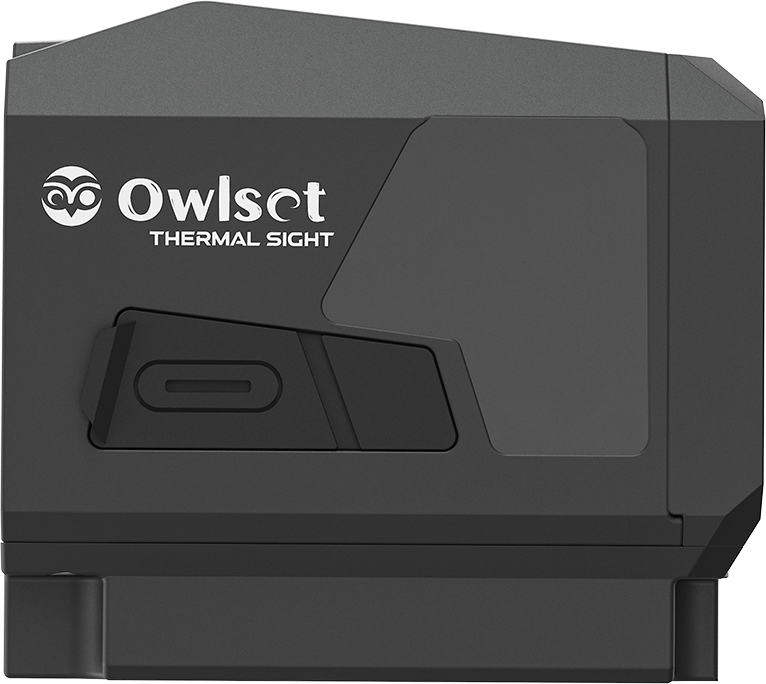

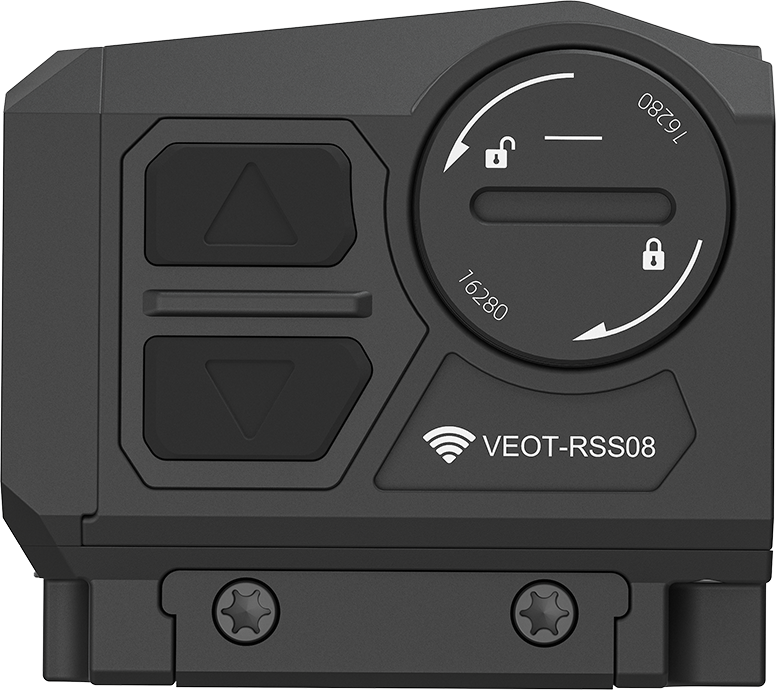

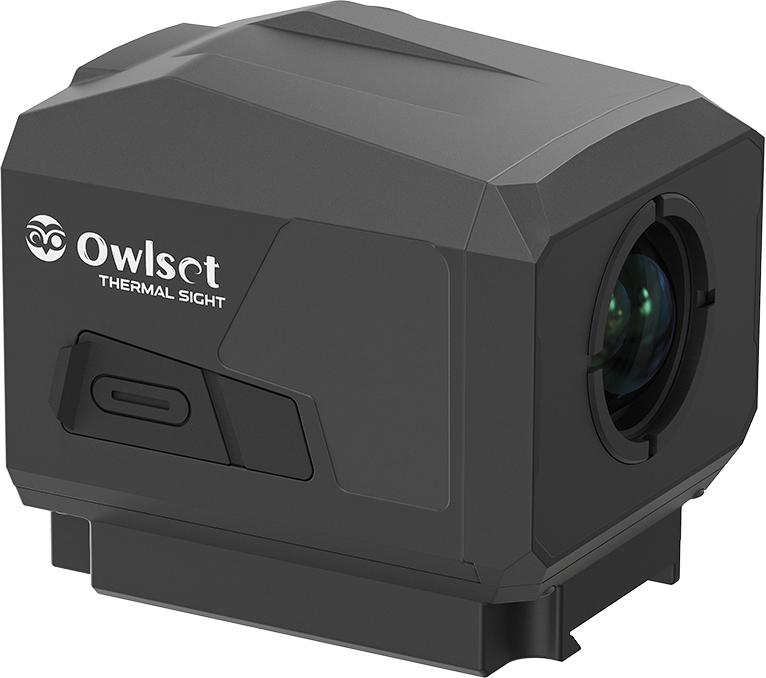

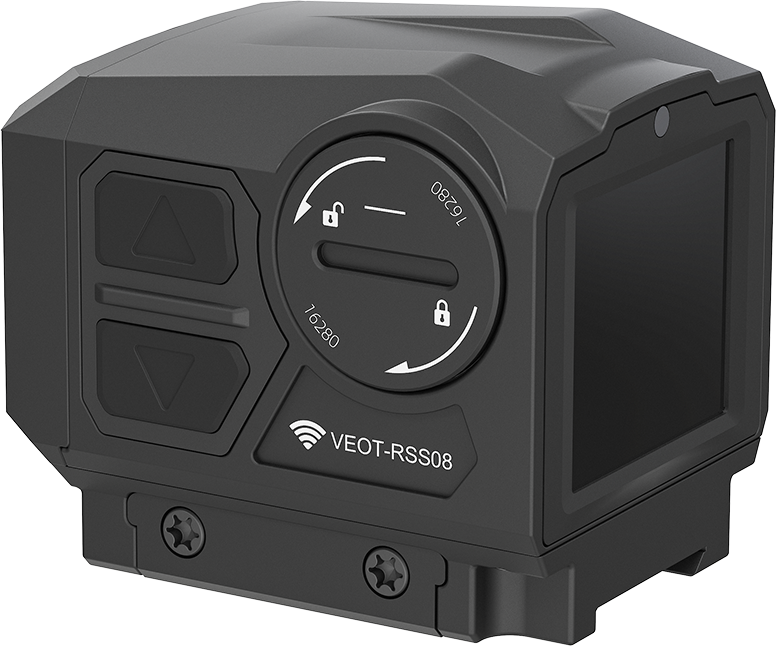

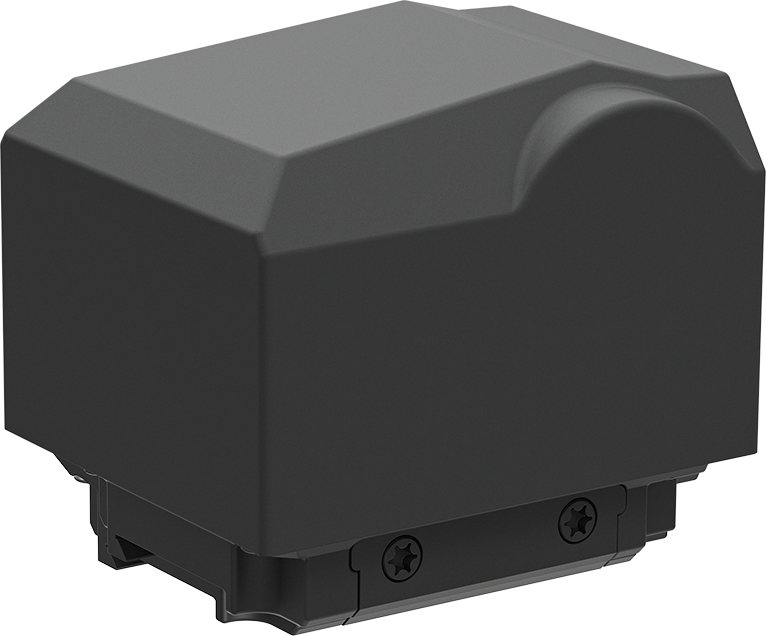

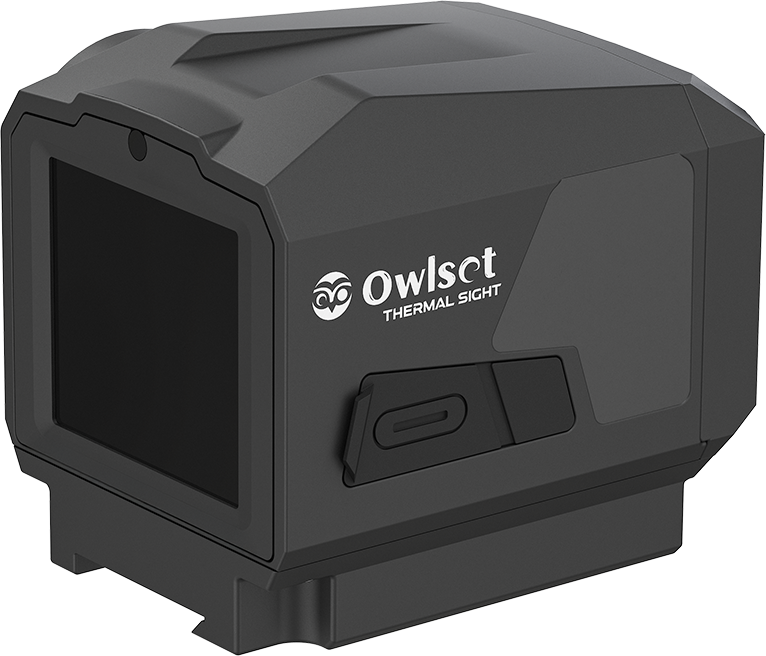

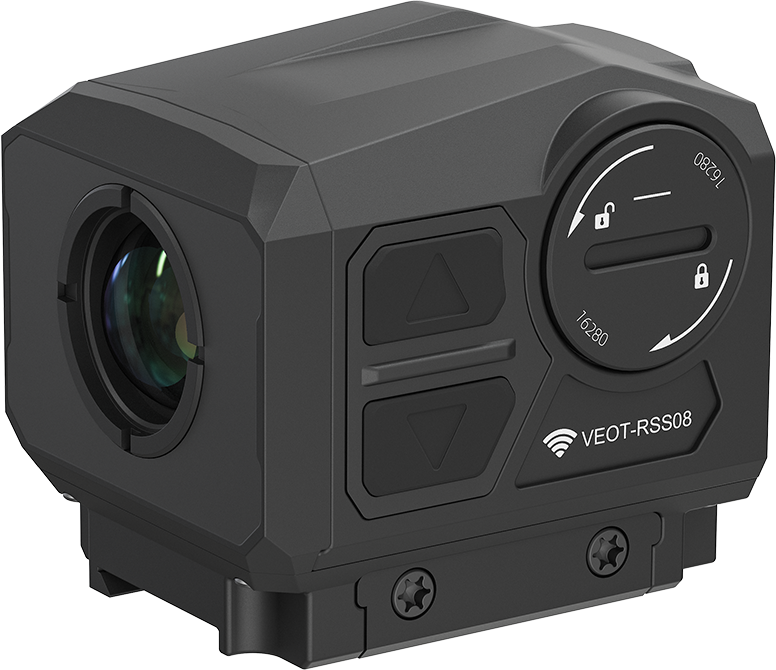

Owlset Heim ES X-Nano STD Wifi Mini Thermal Sight
Ultra-compact thermal sight built for pistols, AR-style rifles and wargame use. The 256x192 thermal sensor delivers reliable detection at short to mid range, while the VOD (Aimpoint ACRO) footprint allows clean mounting on optics-ready slides and Picatinny rails.
Key features
- 256x192 @ 12 μm thermal sensor for compact-size detection
- 0.5x and 1x viewing modes with wide field of view
- Real-time hot-spot tracking automatically marks the warmest target
- VOD footprint compatible with the Aimpoint ACRO standard
- Lightweight 123 g housing, IP67 sealing
- WiFi connection to phone for live view, settings and recording
- Battery powered, USB-C charging
Key specifications
- Sensor: 256x192 @ 12 μm
- Display: OLED
- Magnification: 0.5x / 1x
- Footprint: VOD (Aimpoint ACRO compatible)
- Dimensions: 51 x 43 x 46 mm
- Weight: 123 g
- Waterproof: IP67
- Connectivity: WiFi
- Charging: USB-C
- Finish: Matte black

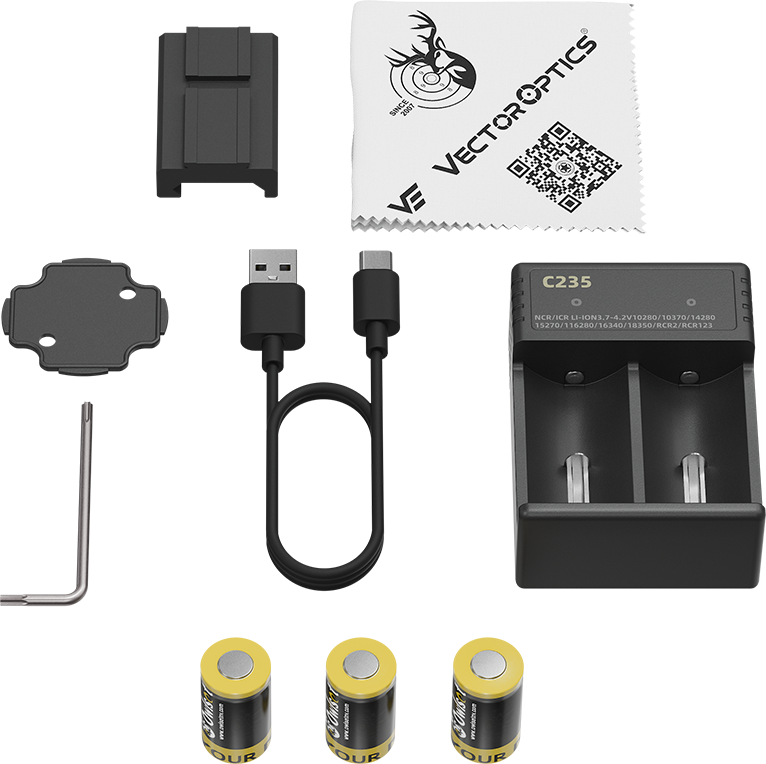

What’s in the box
- Thermal sight
- Mounting base
- Batteries
- USB cable
- Lens cloth
- User manual
