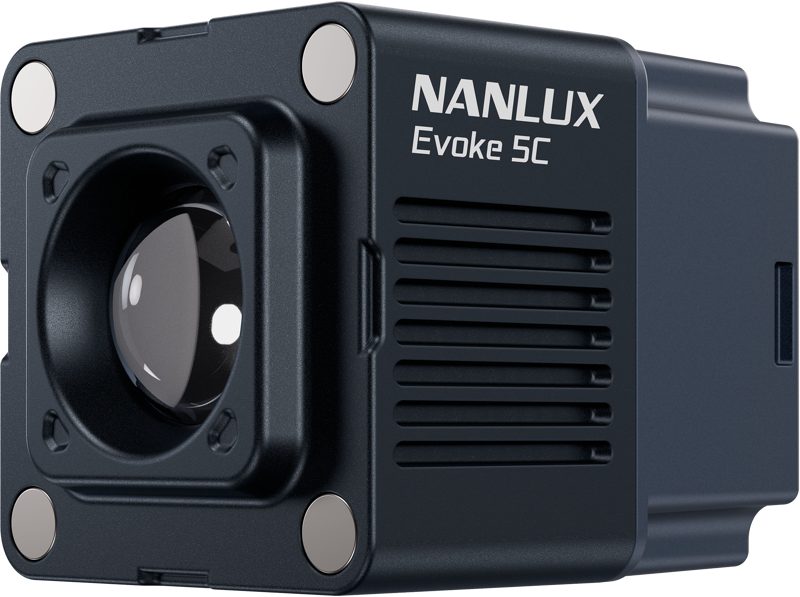

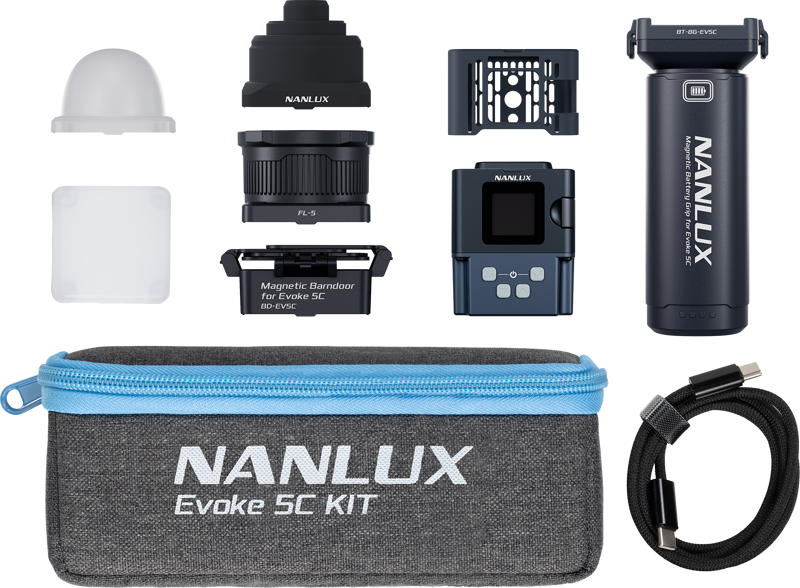

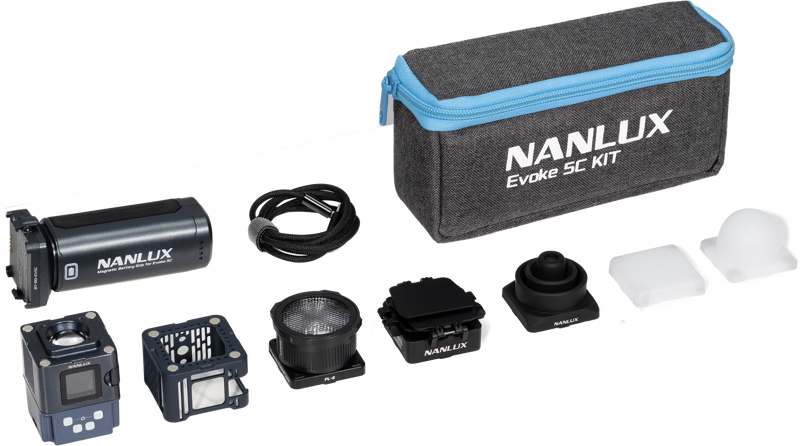

Evoke 5C KIT LED Full-color Spot Light Kit

The Nanlux Evoke 5C redefines what a compact light can do. Designed as a true professional tool in a pocket-sized form, it combines advanced color science, rugged durability, and an intelligent modular ecosystem into a fixture that can go anywhere—and perform everywhere.

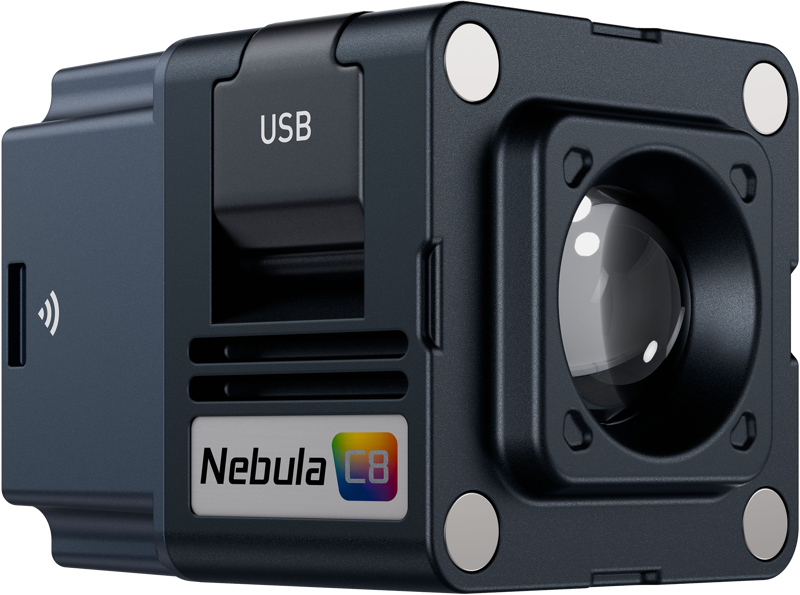

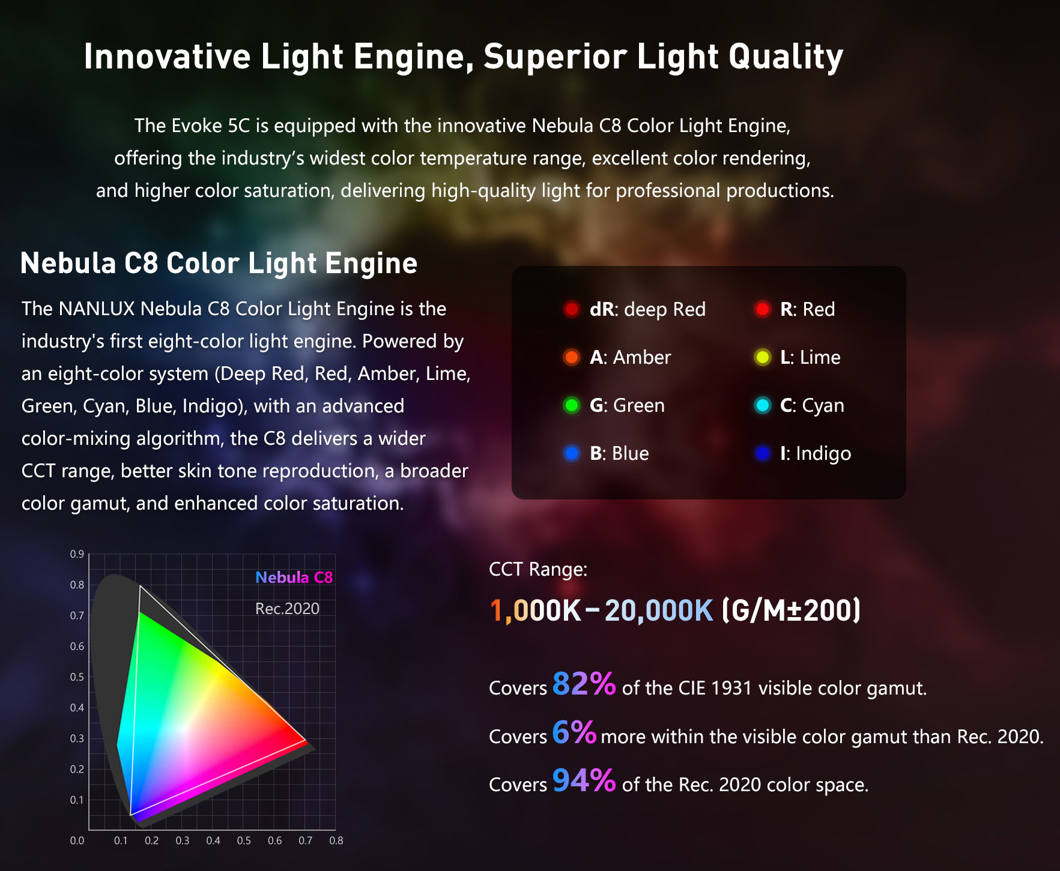

At its core is the Nebula C8 light engine, an advanced multi-spectrum system combining deep red, red, amber, lime, green, cyan, blue, and indigo emitters. This allows the Evoke 5C to deliver an exceptionally wide color temperature range from 1,000K to 20,000K, along with ±G/M 200 adjustment, enabling precise matching across virtually any lighting environment—from candlelight warmth to extreme daylight or stylized color work.

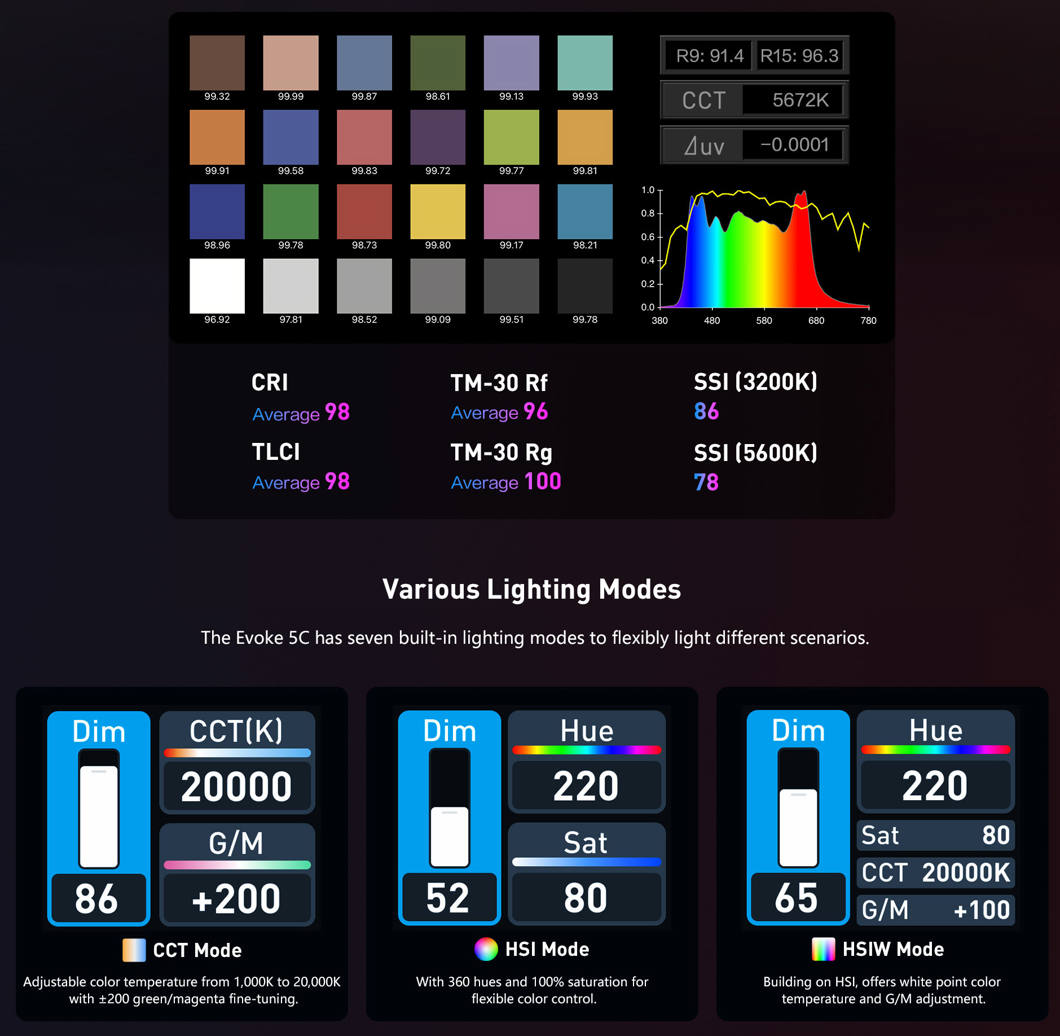

Despite its size, the Evoke 5C delivers true production-quality light, with CRI and TLCI averaging 98, and strong TM-30 performance. This ensures accurate skin tones, clean color reproduction, and reliable results whether used as a key, fill, accent, or practical source.

Built for real-world use

The Evoke 5C is engineered for environments where traditional fixtures simply cannot operate. With an IP67 rating, the unit is fully protected against dust and water, allowing it to operate in rain, wet conditions, and even underwater.

Submersible up to 1 meter for 30 minutes

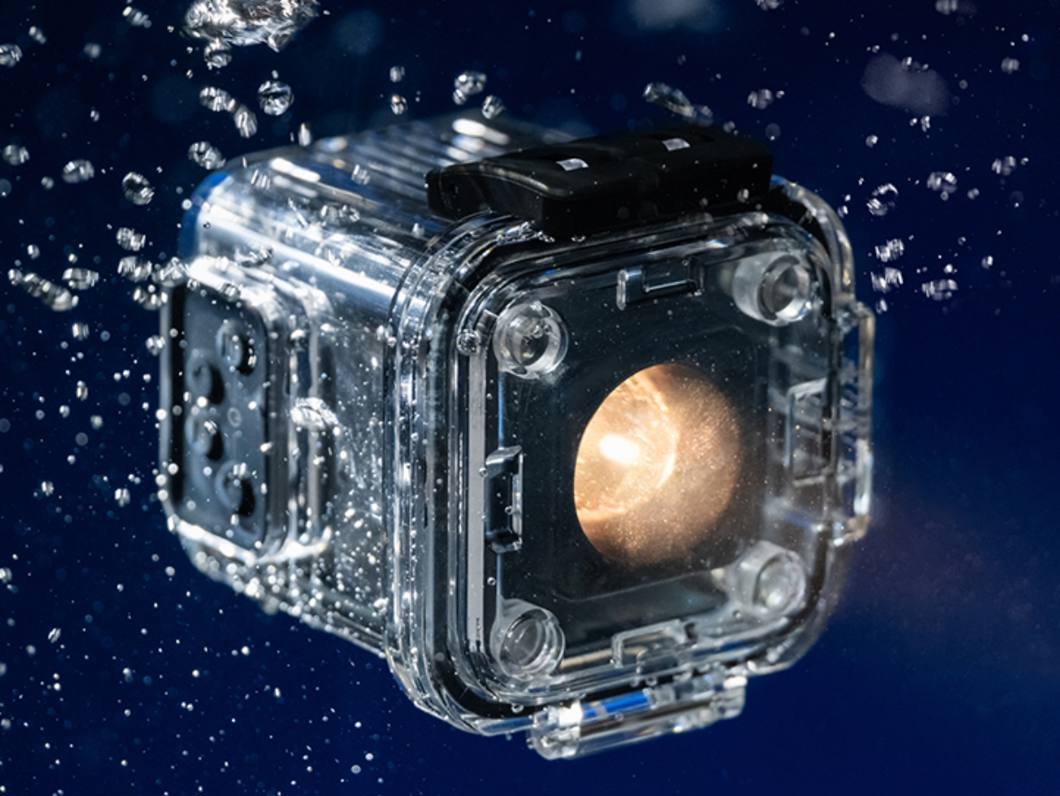

Extended underwater capability up to 30 meters with dedicated housing

Fully sealed construction for outdoor and location work

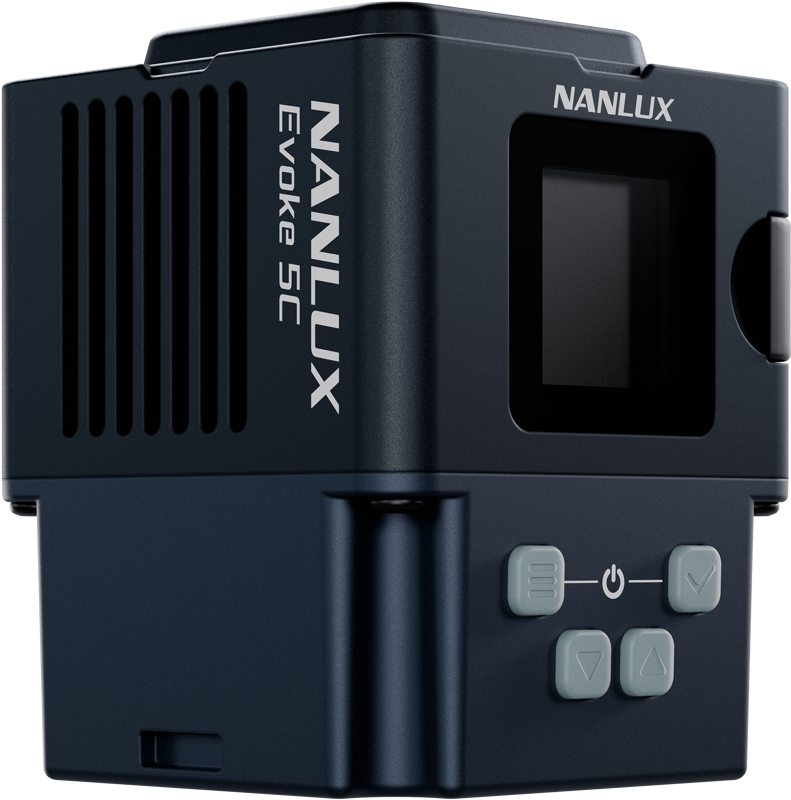

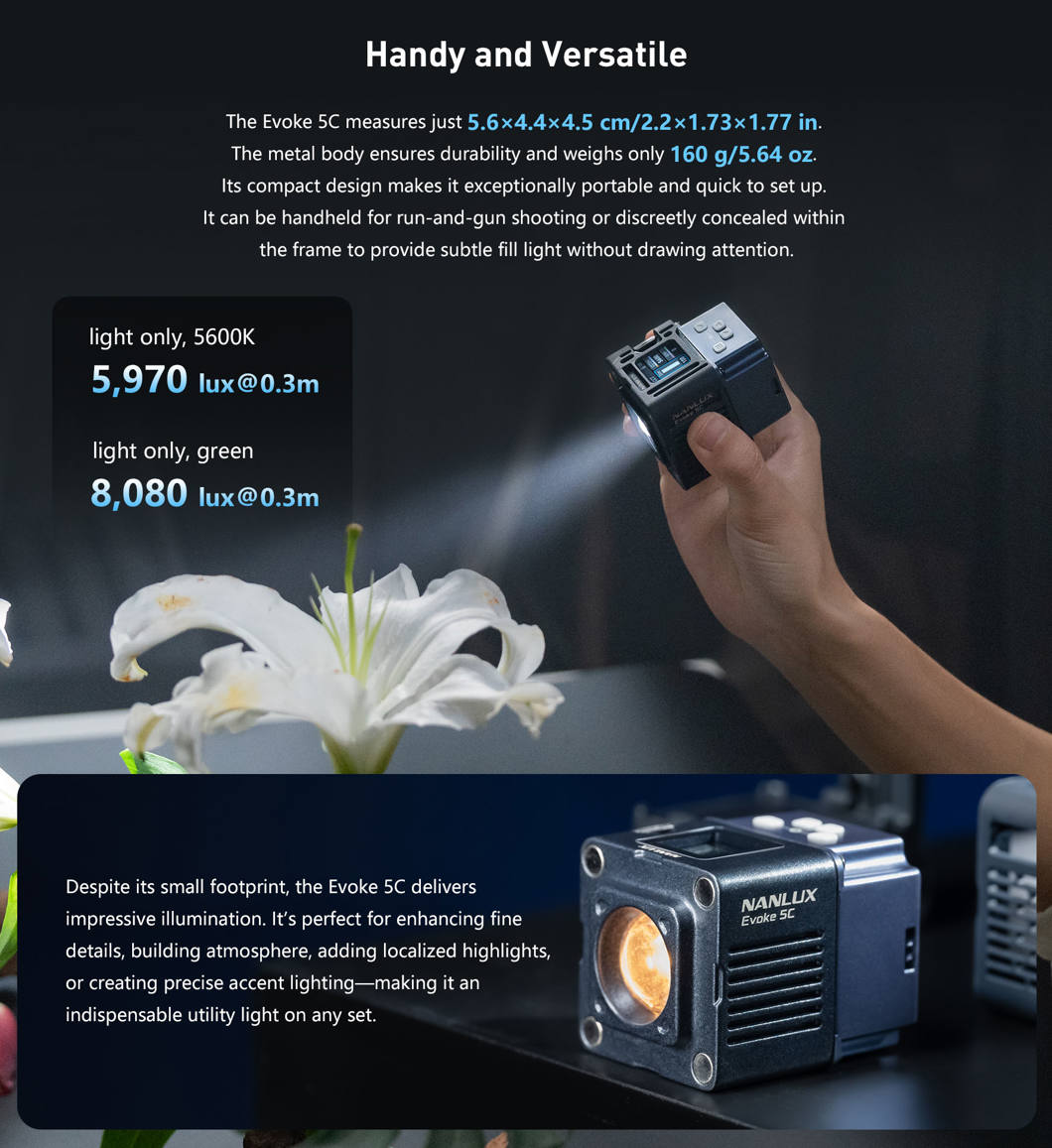

Weighing only 160 grams, and measuring just 56 × 44 × 45 mm, it can be mounted, hidden, or handheld in situations where larger fixtures are impractical.

Power without limitations

The Evoke 5C is built around flexibility. It features a built-in battery, capable of delivering up to 2 hours and 36 minutes runtime, or approximately 50 minutes at full output.

In addition, the system supports multiple power solutions:

USB-C charging

External power banks or adapters (5V/2A+)

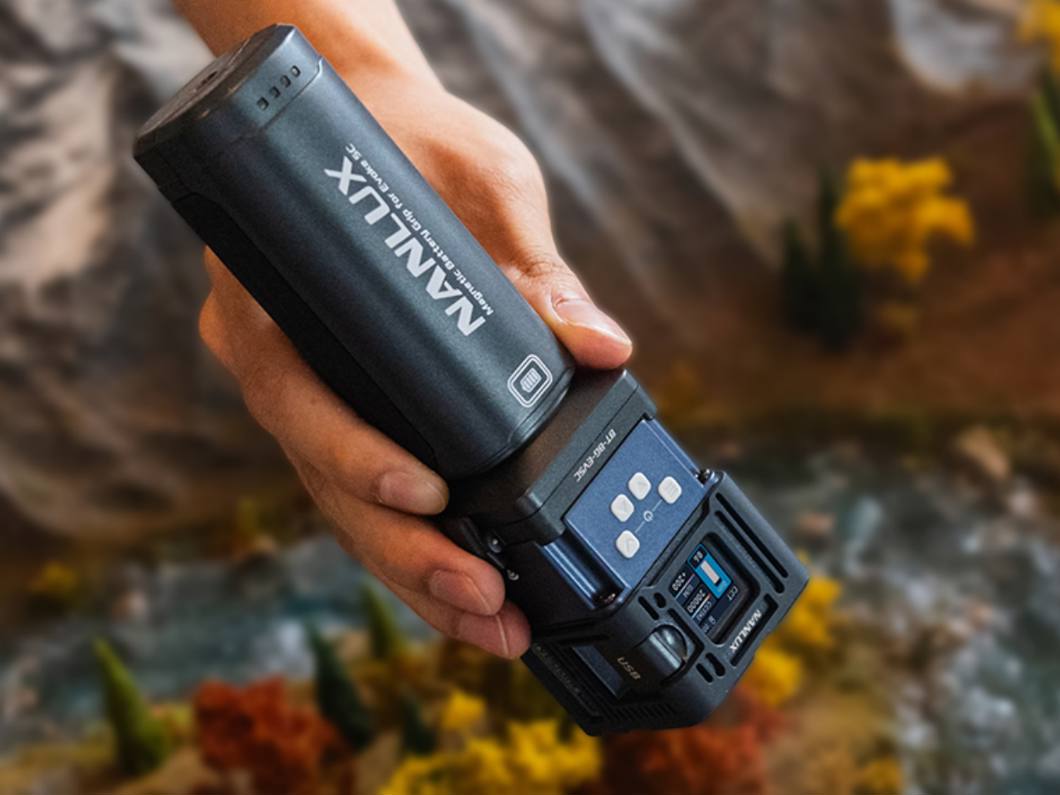

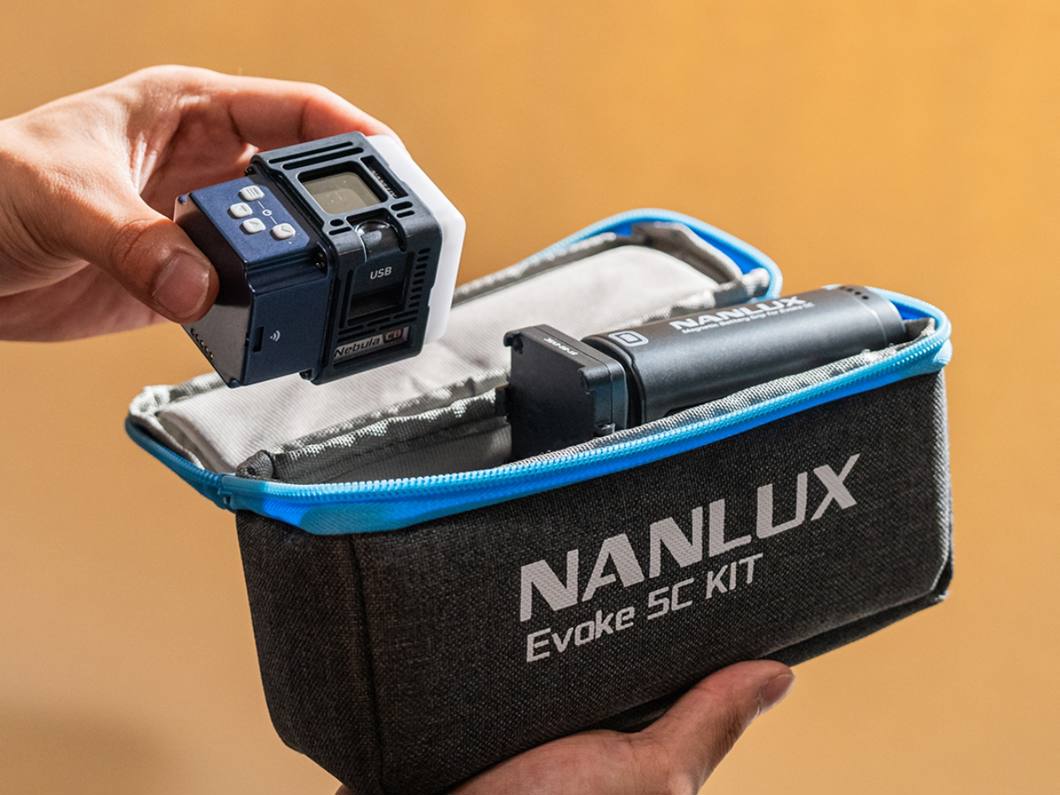

Electronic contact charging via accessories (battery grip, E27 adapter, charging case)

This ensures continuous operation whether you are shooting handheld, on location, or in a fixed installation.

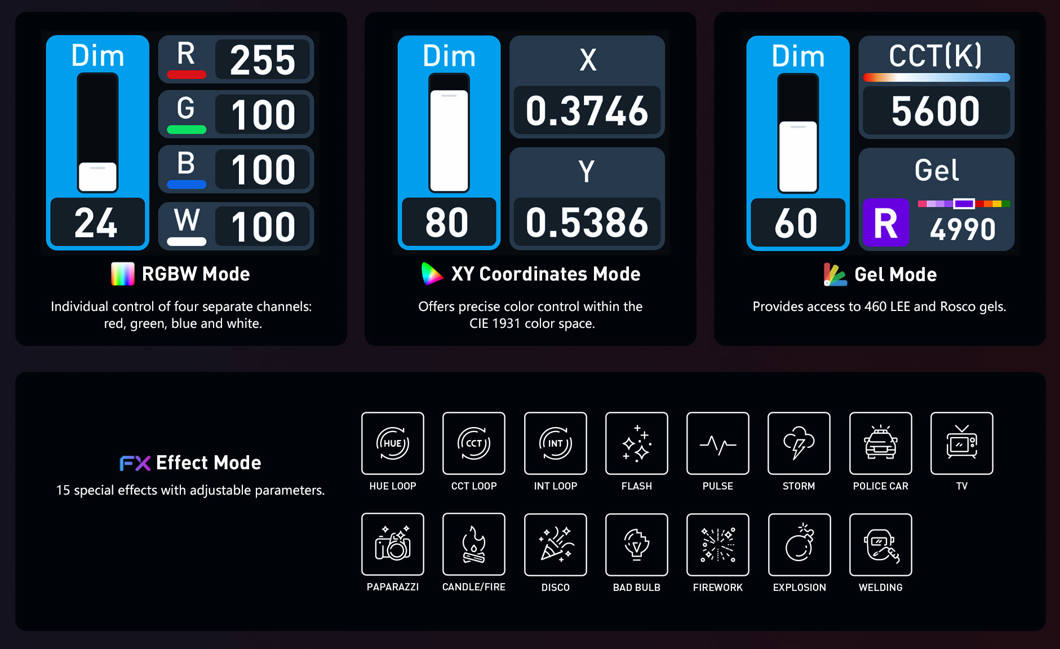

Advanced control and lighting modes

The Evoke 5C offers a complete professional control suite:

Lighting Modes:

CCT

HSI

RGBW

XY coordinates

Gel simulation

Effects (for creative applications)

Control Methods:

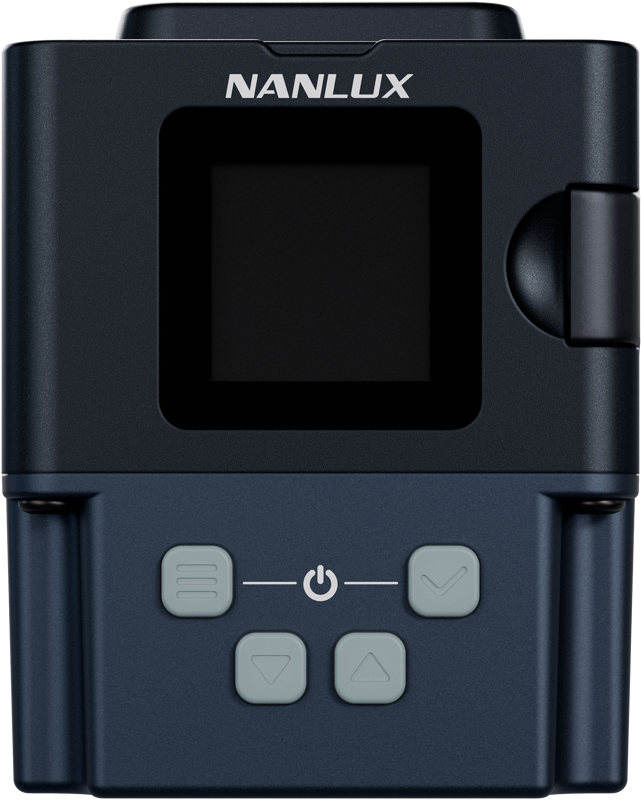

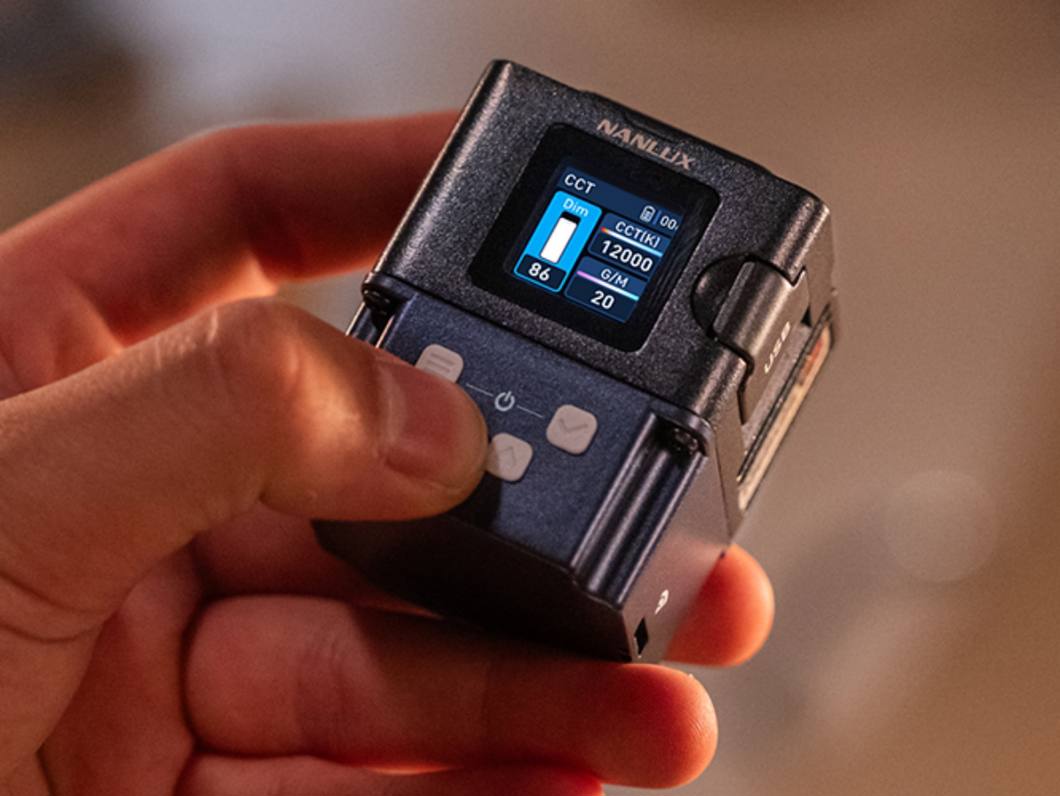

On-board controls

NANLINK App (Bluetooth)

CRMX wireless DMX

DMX/RDM (wired)

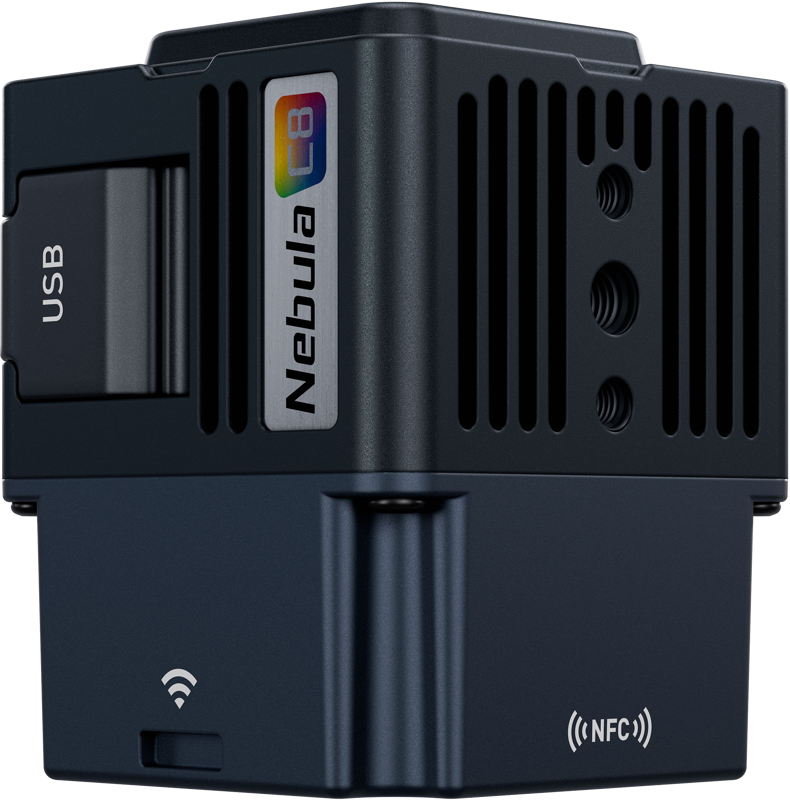

NFC quick pairing

This level of control allows seamless integration into both simple creator setups and complex lighting rigs.

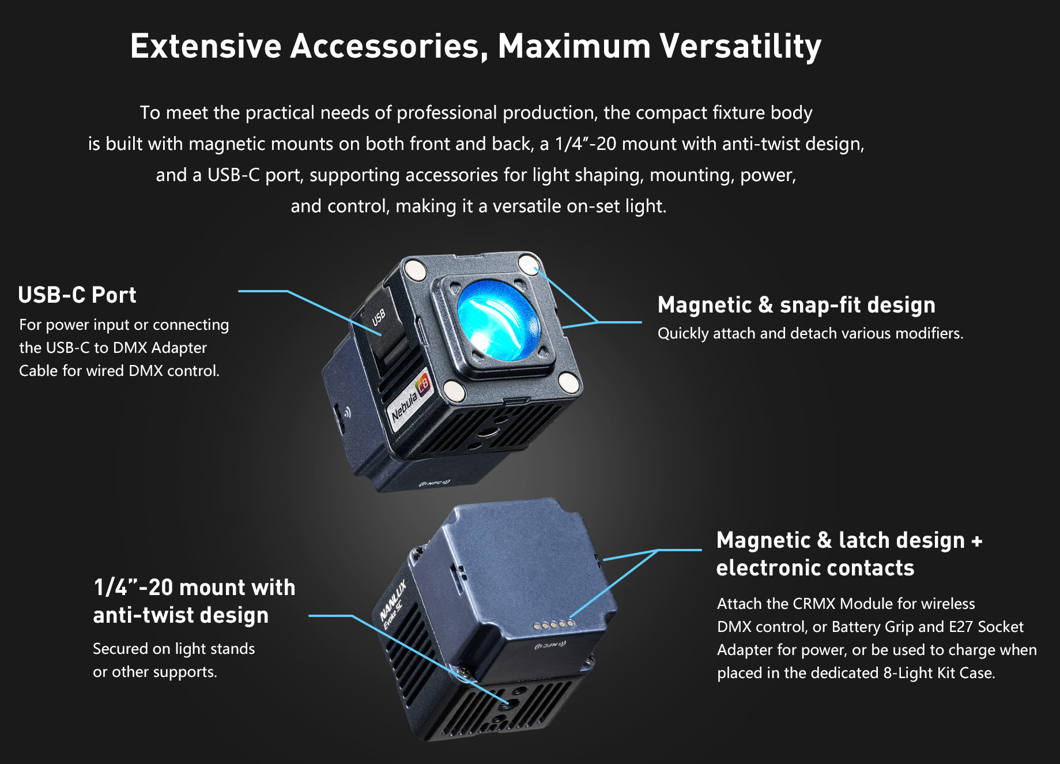

Magnetic ecosystem – speed and precision

One of the defining features of the Evoke 5C is its magnetic modifier system with electronic contact recognition. Modifiers snap into place instantly, and the light automatically recognizes the accessory, optimizing output and behavior.
