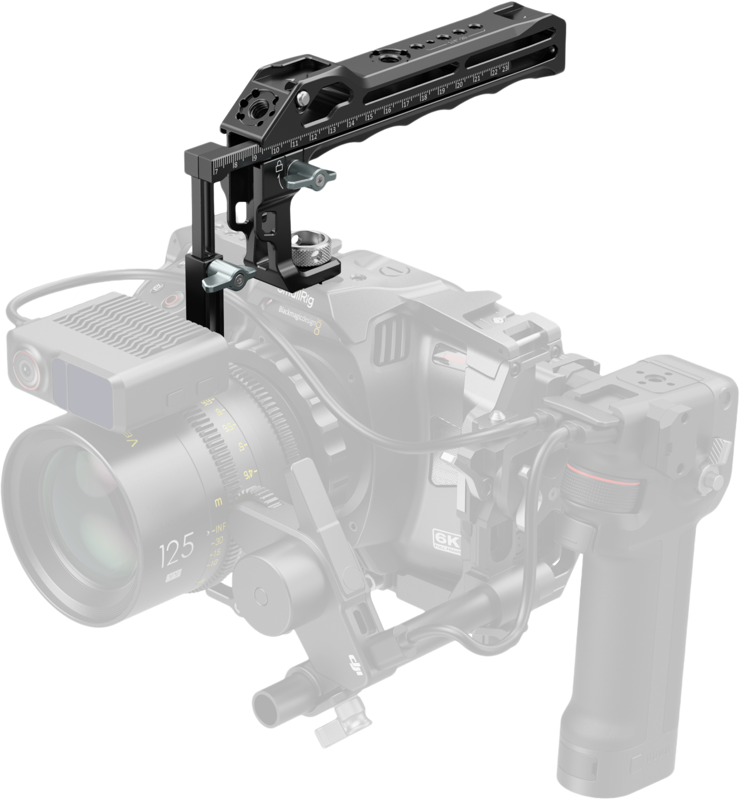

SmallRig 5236 Top Handle for DJI Focus Pro LiDAR

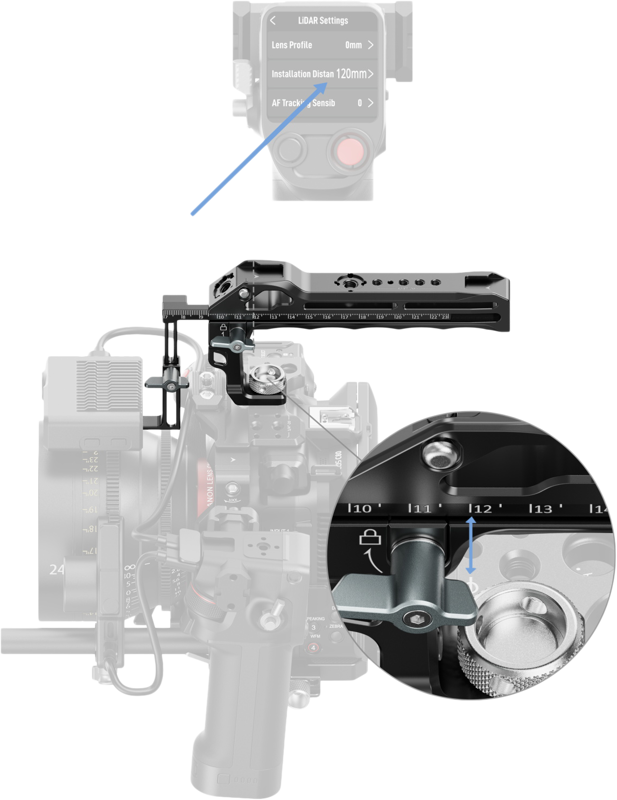

A built-in 23cm measuring scale provides direct distance measurements between the LiDAR glass plane and the camera's focal plane, streamlining calibration.

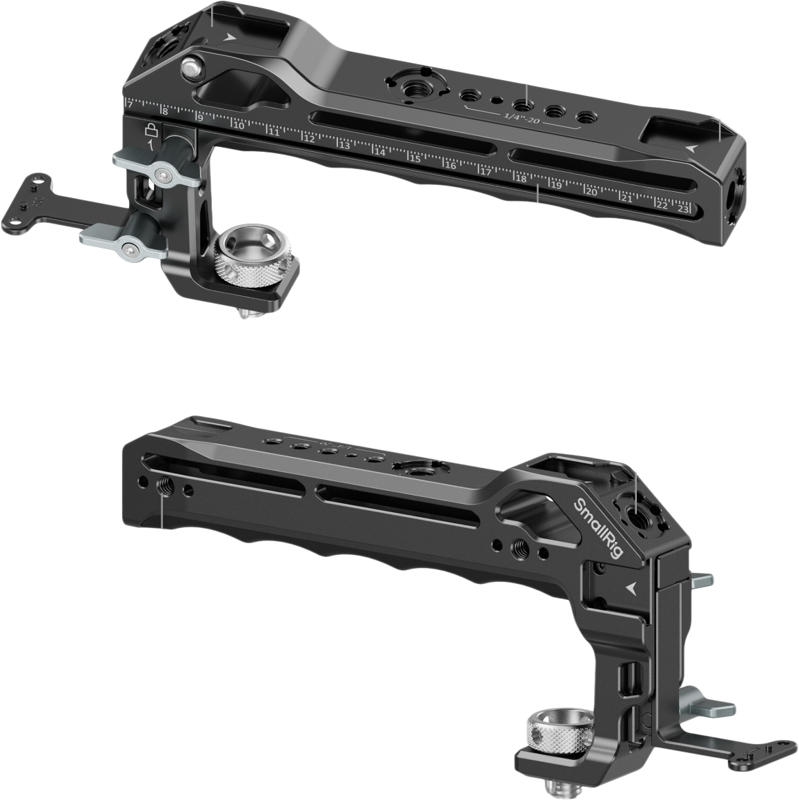

The detachable bracket design offers flexible configurations for various shooting environments.

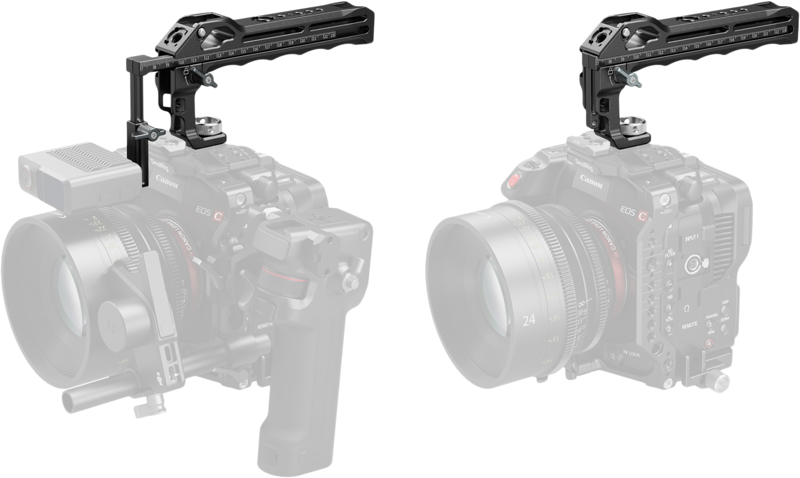

When not in use with the DJI Focus Pro system, the handle serves as a conventional top handle, enhancing versatility and cost efficiency.

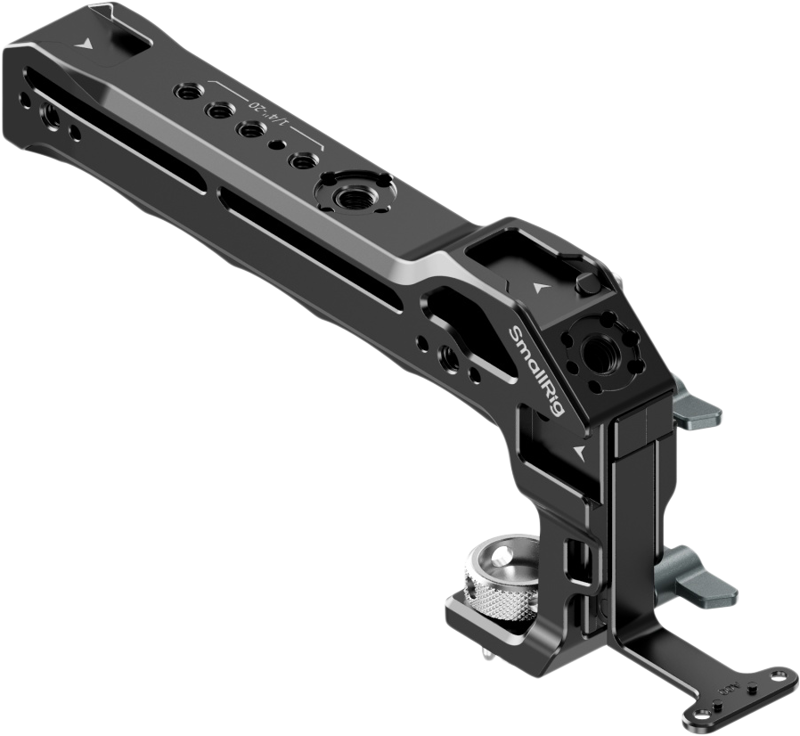

Ergonomically designed, the handle features a comfortable grip with embedded silicone for anti-slip and cold-resistant performance.
It’s equipped with two cold shoe mounts on the front and two on the rear for simultaneous attachment of accessories such as microphones, video lights, or monitors.

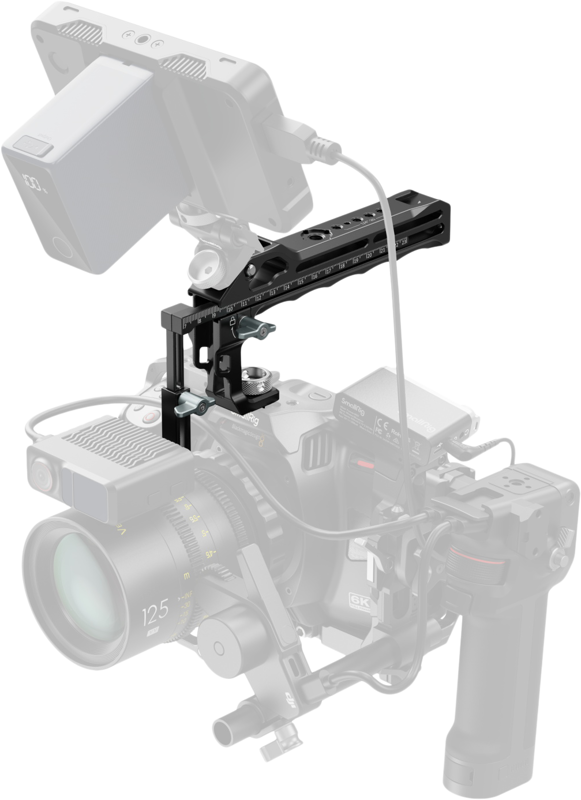

Front and top ARRI locating holes enable the attachment of monitor mounts for expanding monitors, while multiple 1/4"-20 threaded holes and locating holes on the top and right side are compatible with magic arms for monitor mounting or remote controllers for camera recording control.
Compatibility:
- Compatible with all cages featuring ARRI locating holes on top

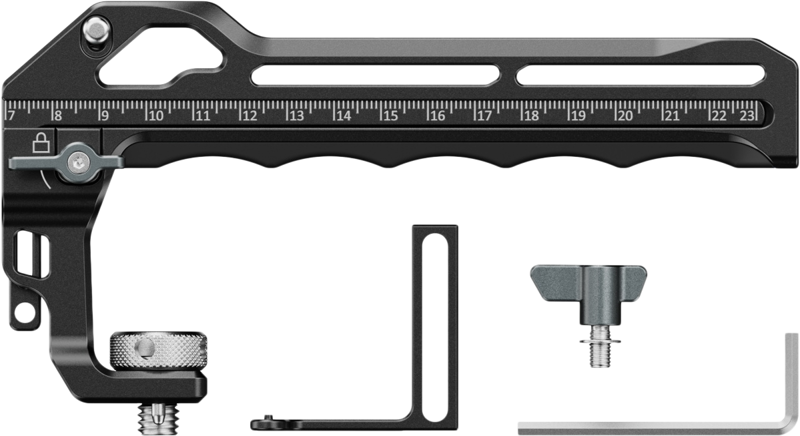

Packaging includes:
- Top Handle
- Locking Knob
- Washer
- Allen Wrench
- Mounting Bracket for DJI Focus Pro LiDAR
- Operating Instruction
